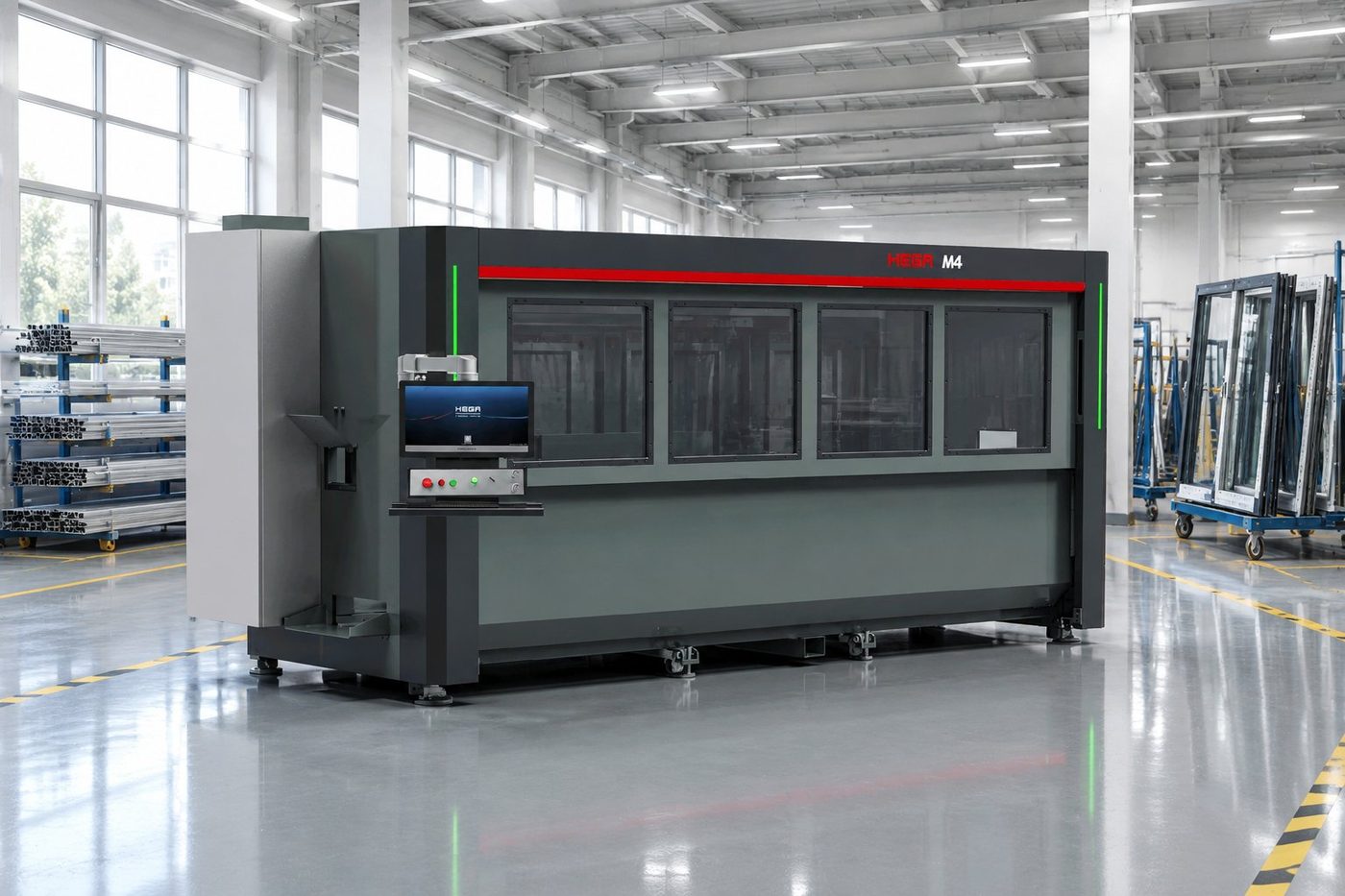

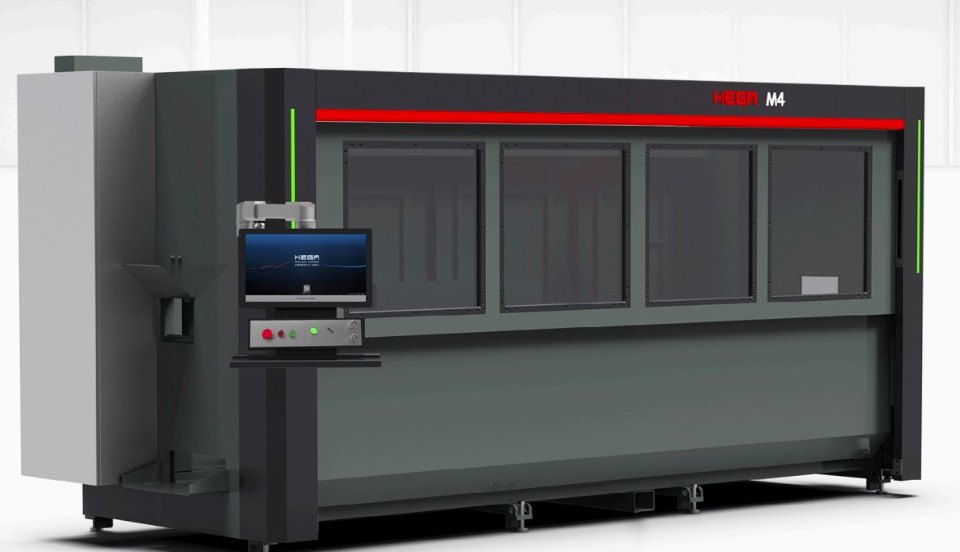

M4-3000 4-Axis Machining Center
3000 mm four-axis travel · 95 m/min feed · three faces in one setup
Machine Overview
Four-axis machining of aluminium window, door and cabinet profiles — three faces in a single clamping, from a compact 5000 mm frame.
The M4-3000 is a four-axis machining center for milling, drilling, lock-hole and hinge work on aluminium window, door, cabinet and bathroom profiles.
The spindle swings through 180°, so one clamping machines three faces of the profile. Servo-driven clamps follow the CAM program, and an eight-station magazine changes tools automatically.
A 3000 mm working area and 95 / 60 / 40 m/min feed rates keep throughput high from a compact 5000 mm frame, while the graphical HMI simulates the job in 3D before the first cut.
Graphical Operation
Graphical operation with 3D real-time machining simulation

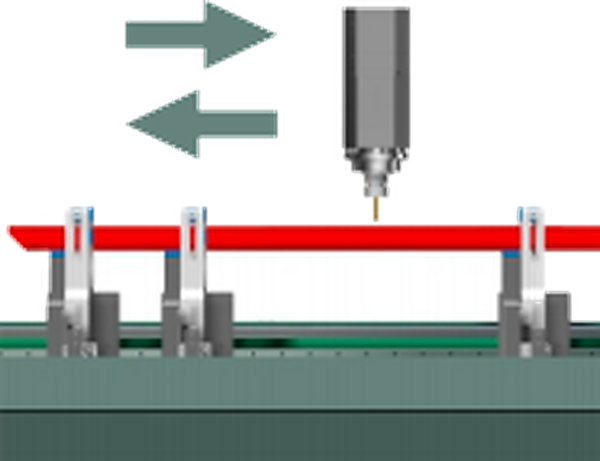

Smart Clamping
Each clamp is independently servo-driven and positioned from the CAM program

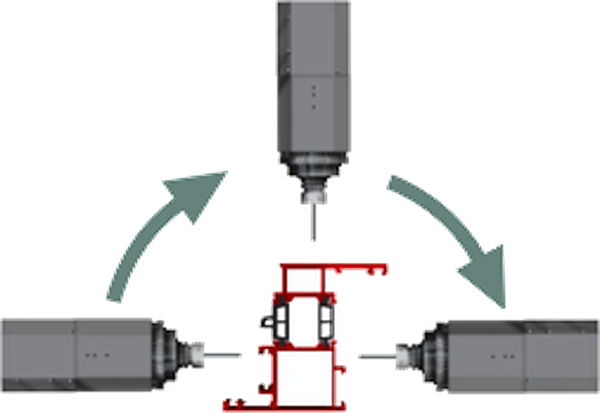

Rotating Spindle

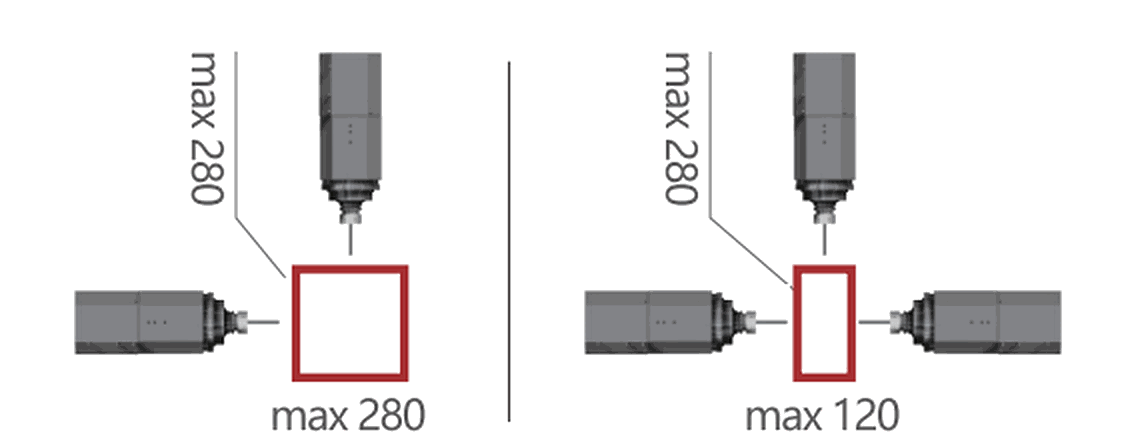

The spindle rotates 0° to 180°, machining three faces in one clamping

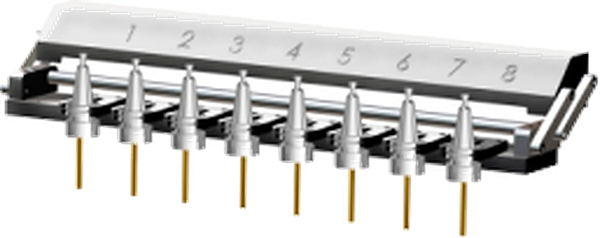

8-Station Tool Magazine
An eight-station magazine changes and measures tools automatically
Smart Interconnection
Downloads processing data online and feeds progress back to MES
Specifications
Key specifications for M4-3000. Final configuration is set at order confirmation.
| Item | Value |
|---|---|
| Working area (X / Y / Z) | 3000 / 780 / 550 mm |
| Feed rate (X / Y / Z) | 95 / 60 / 40 m/min |
| Positioning accuracy | 0.1 mm |
| Servo motor power | 4.5 kW / 24000 rpm |
| A-axis rotation range | 0° – 180° |
| Tool magazine capacity | 8 stations |
| Total installed power | 12 kW |
| Weight | 3800 kg |
| Overall dimension (L × W × H) | 5000 × 1600 × 2700 mm |

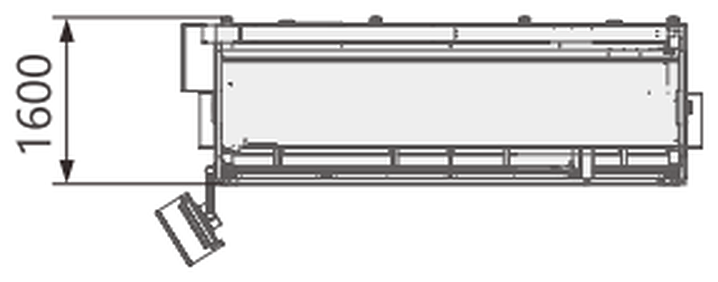

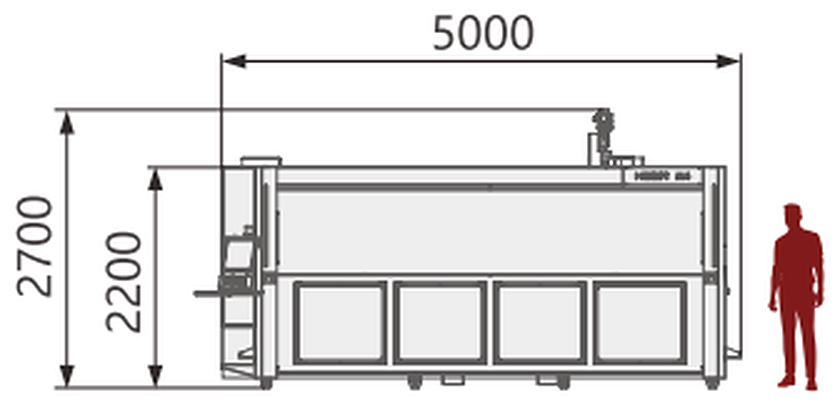

Machine Layout
Outline drawing of the M4-3000 showing overall footprint and working envelope.
