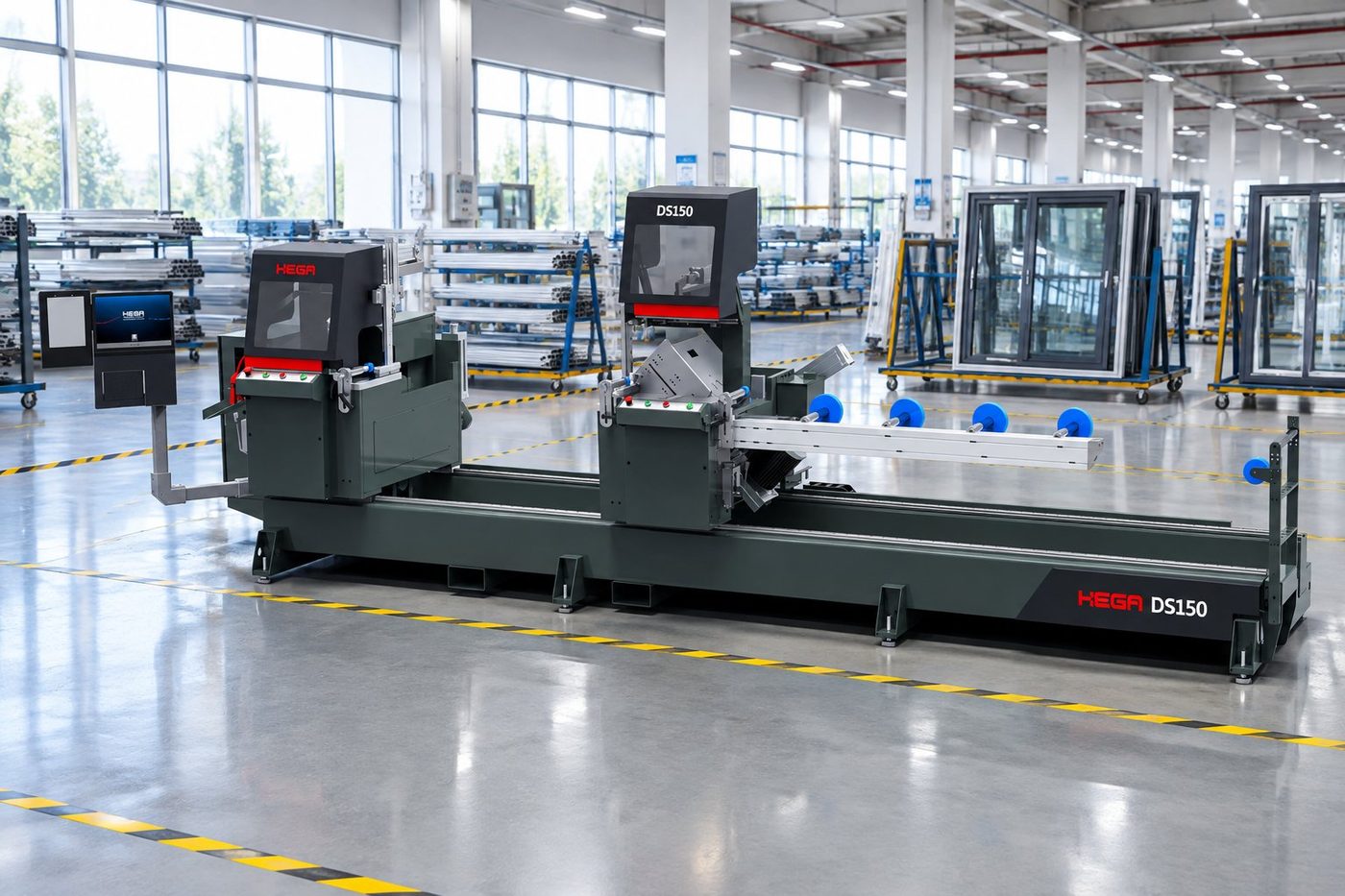

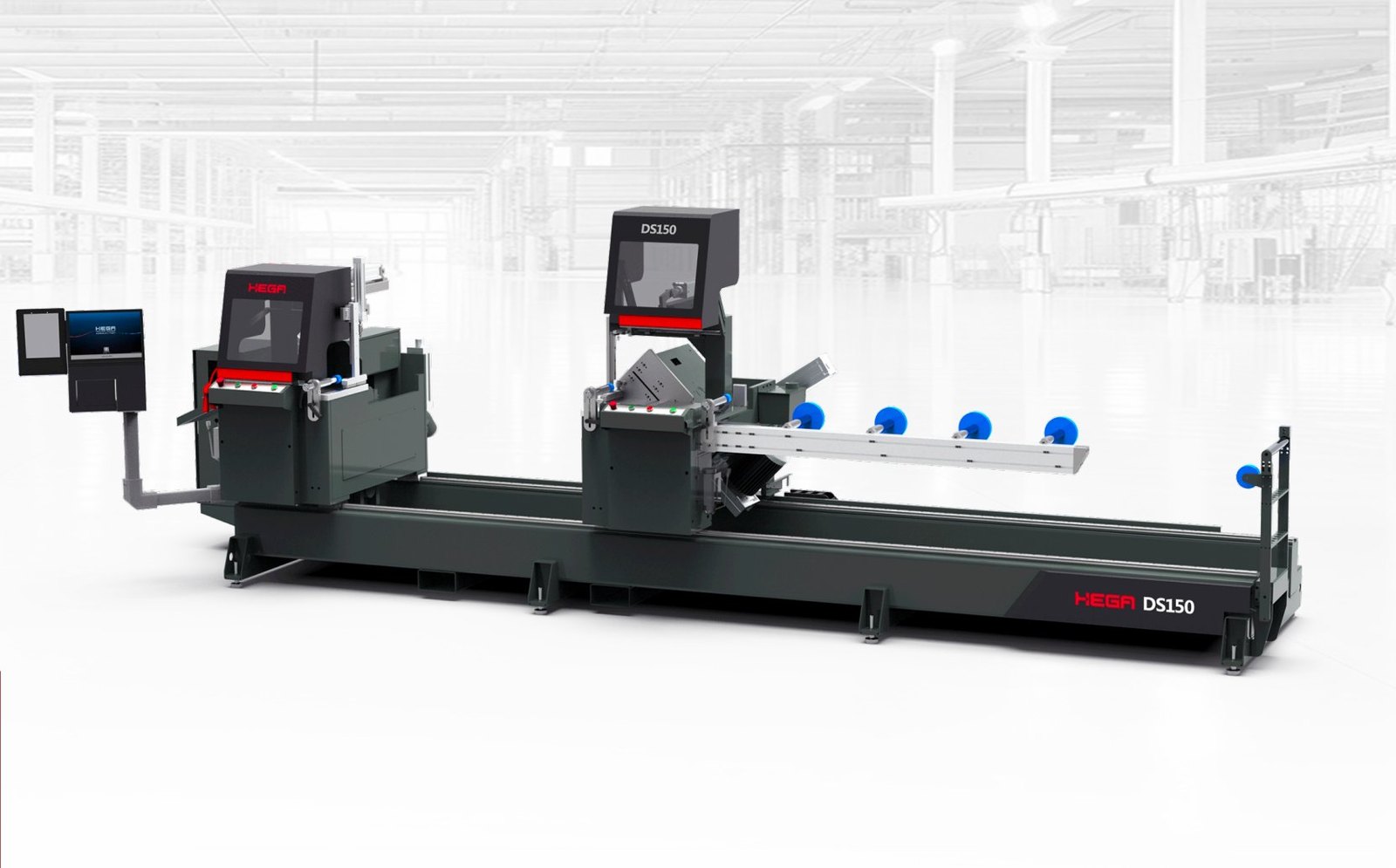

DS150 Double-Head Cutting Saw
440 – 4260 mm cutting range · 270 mm oversize function · 0.1 mm accuracy
Video coming soonMachine Overview
45° and 90° cutting of aluminium window and door profiles — an inward-swing blade built for wide sections.
The DS150 is a double-head cutting machine for aluminium window and door profiles. Its inward-swing blade keeps the head rigid on wide sections, so mitre and square cuts stay true.
Cutting lengths run from 440 to 4260 mm, and the oversize / short-cut function takes that down to 270 mm and out to unlimited length, so spacers and full frame members come off one program.
Positioning accuracy of 0.1 mm and real-time ERP integration make every cut repeatable: the machine works from the current cutting list and reports progress back to MES.

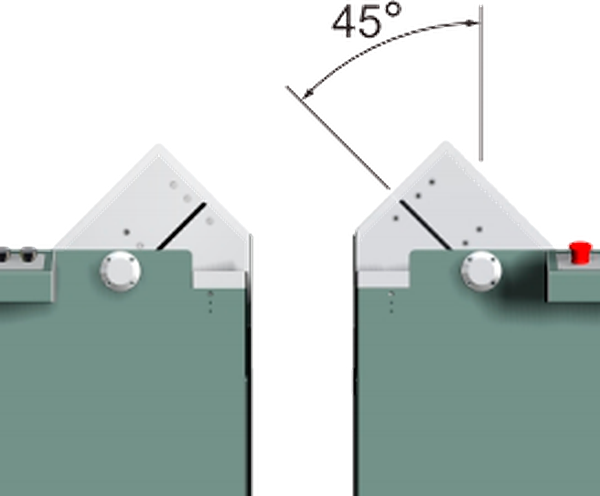

45° Inward Swing & 90° Cutting
A cylinder switches between 45° and 90° cutting, with 45° as the inward swing angle
Cutting List Interconnection
Downloads the cutting list online and feeds cutting progress back to MES

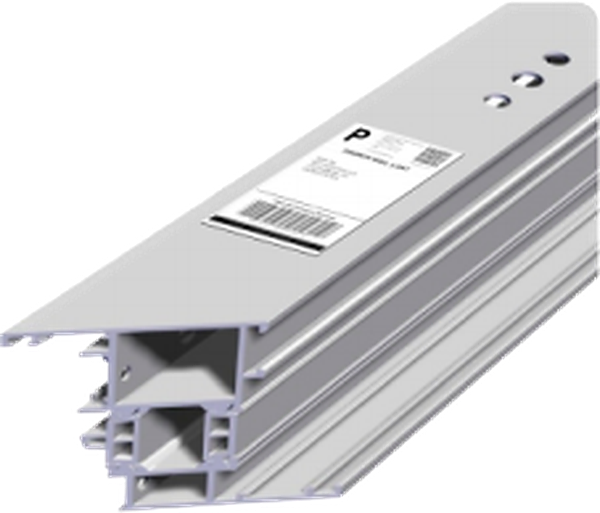

Label Printing
Prints rich-information labels on demand
Specifications
Key specifications for DS150. Final configuration is set at order confirmation.
| Item | Value |
|---|---|
| Cutting length range | 440 – 4260 mm |
| Oversize / short-cut range | 270 mm – unlimited |
| Positioning accuracy | 0.1 mm |
| Saw blade size | 500 × 30 × 120T |
| Total installed power | 7 kW |
| Spindle power | 3 kW × 2 |
| Weight | 2300 kg |
| Overall dimension (L × W × H) | 5700 × 1735 × 1890 mm |

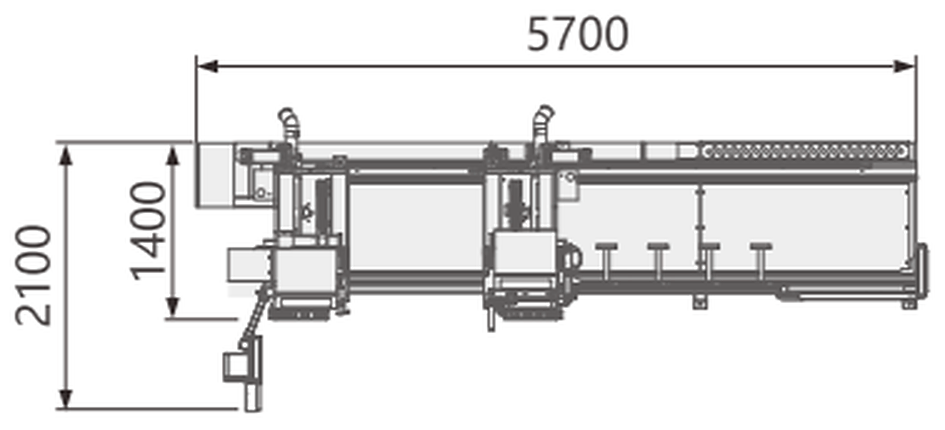

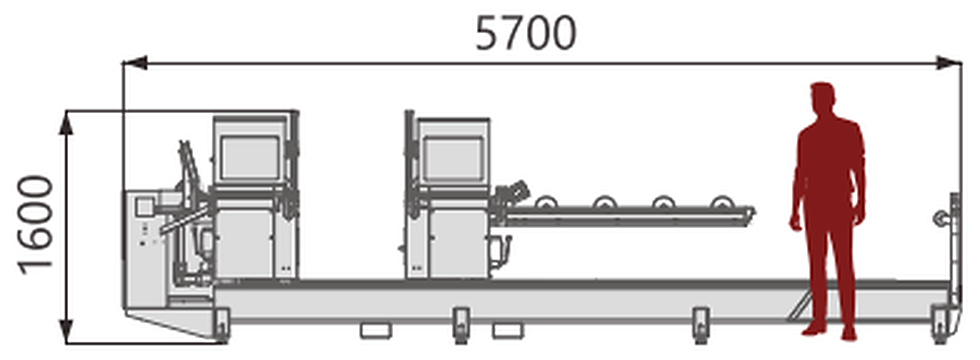

Machine Layout
Outline drawing of the DS150 showing overall footprint and working envelope.
