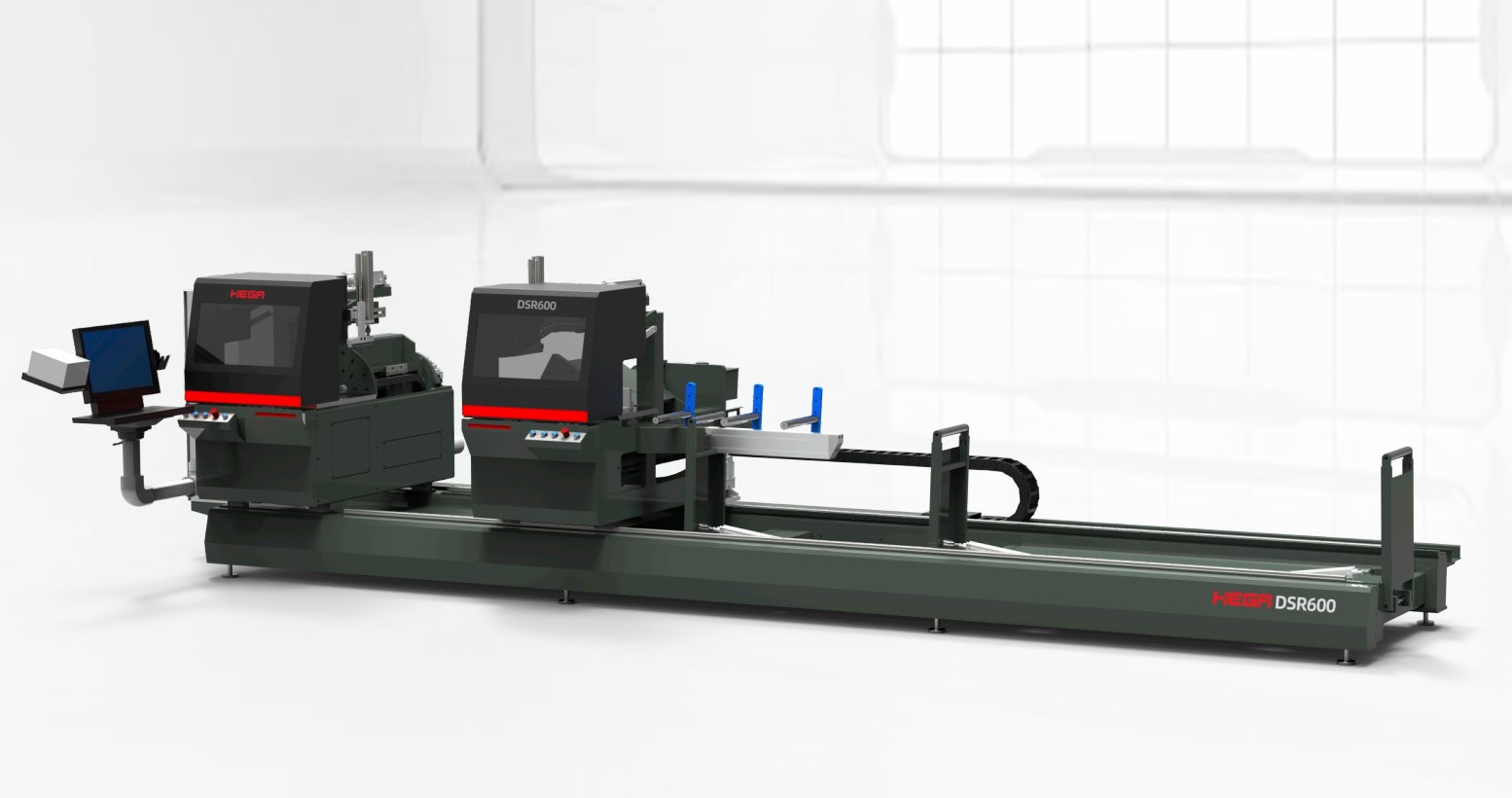

DSR600 Any-Angle Cutting Saw
30° – 90° any-angle cutting · 600 mm blade · up to 5000 mm
Machine Overview
Any-angle cutting between 30° and 90° — twin 4 kW spindles, a 600 mm blade, and profiles up to 5000 mm long.
The DSR600 is an any-angle cutting saw for aluminium window and door profiles.
A 600 mm blade and twin 4 kW spindles cover the full 30° – 90° range in one clamping, so mitre, reverse-mitre and square cuts all come off the same setup.
Cutting lengths run from 500 mm to 5000 mm, and 0.1 mm positioning accuracy keeps large-section end faces clean and burr-free, batch after batch.

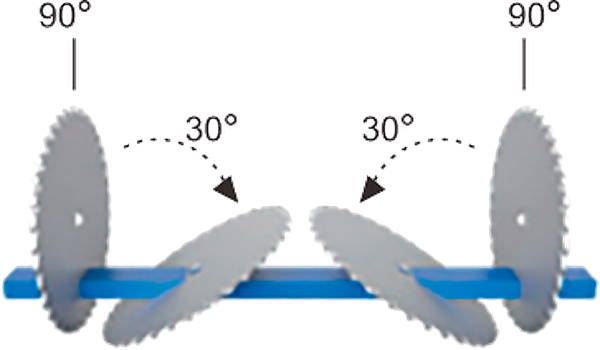

30° – 90° Any-Angle Cutting
Servo-driven cutting angle holds anywhere between 30° and 90°

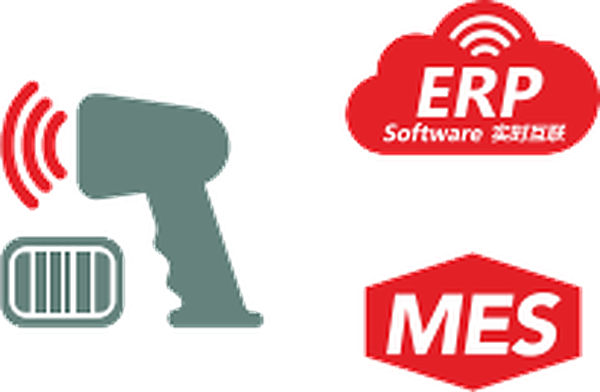

Cutting List Interconnection
Downloads the cutting list online and feeds cutting progress back to MES

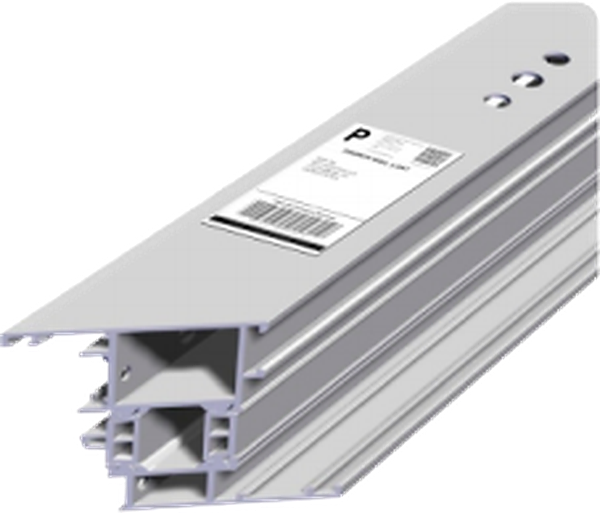

Label Printing
Prints rich-information labels on demand
Specifications
Key specifications for DSR600. Final configuration is set at order confirmation.
| Item | Value |
|---|---|
| Cutting length range | 500 – 5000 mm |
| Cutting angle | 30° – 90° |
| Positioning accuracy | 0.1 mm |
| Saw blade size | 600 × 30 × 120T |
| Total installed power | 9 kW |
| Spindle power | 4 kW × 2 |
| Weight | 1850 kg |
| Overall dimension (L × W × H) | 6600 × 1600 × 1890 mm |

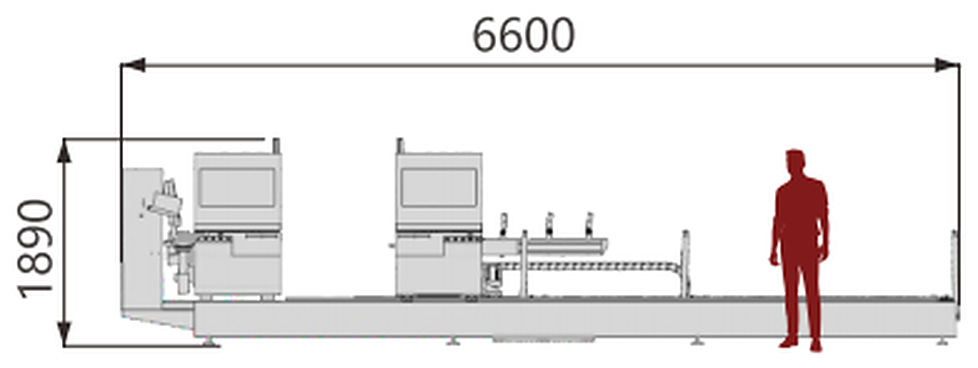

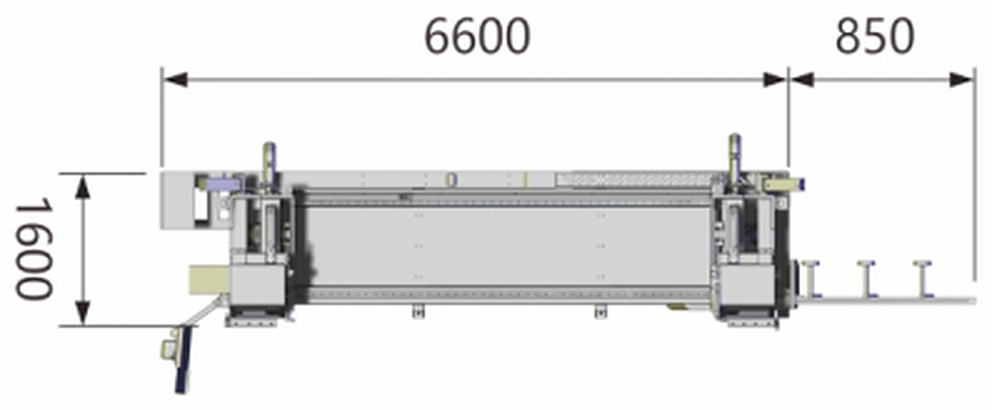

Machine Layout
Outline drawing of the DSR600 showing overall footprint and working envelope.
