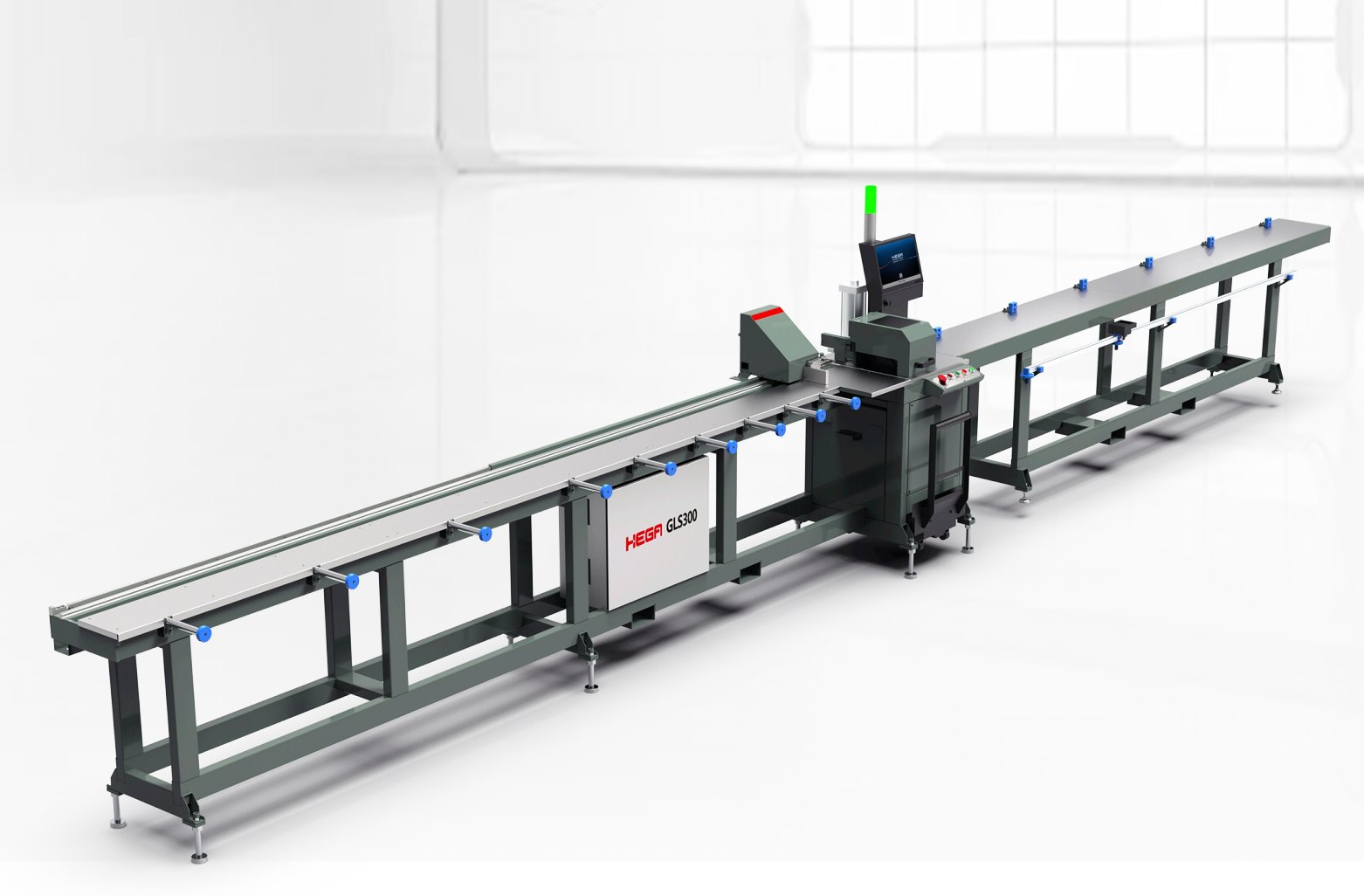

GLS300 Auto Length-Setting Cutting Saw
Wireless measurement · auto length-set · 0.1 mm accuracy

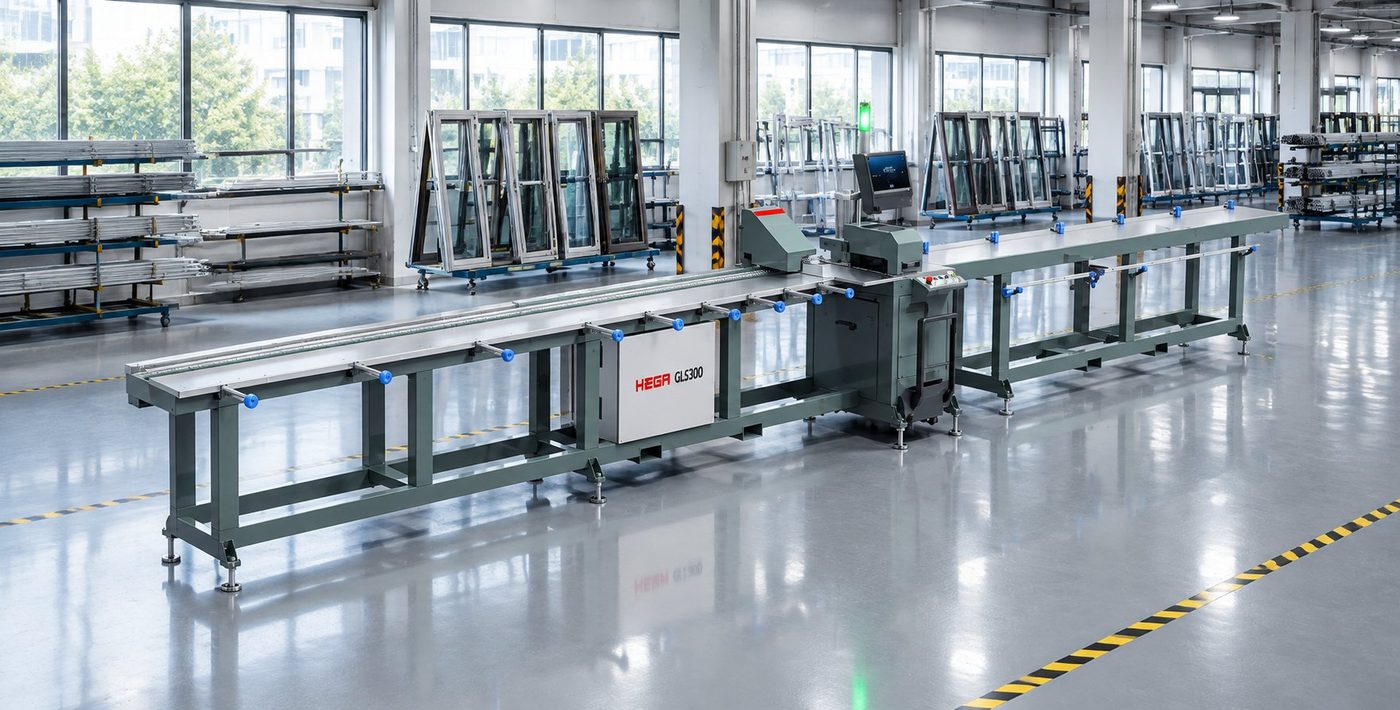

Video coming soonMachine Overview
Measure the glazing bead, send it wirelessly, and the saw sets its own length — 0.1 mm accurate, up to 2.8 m.
The GLS300 measures aluminium window and door glazing-bead length and sends the reading straight to the saw, which then sets its own length and cuts.
Measure 100 – 2800 mm and cut 200 – 4600 mm to 0.1 mm accuracy. Pull, press — no tape measure, no arithmetic, no manual length entry, and less scrap on every batch.
The measuring ruler covers 2.8 m at only 3.1 kg, so one operator can carry it along the frame; dedicated cutting paths also handle curved profiles.
0.1 mm Measuring Accuracy
A high-precision magnetic scale reads glazing-bead length to 0.1 mm

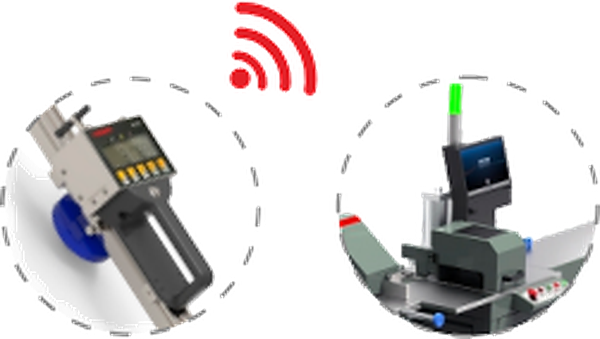

Wireless Data Transfer
One press sends the measurement to the saw, which sets its length automatically

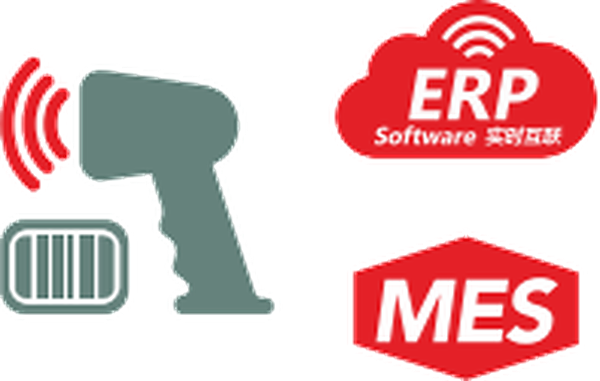

Smart Interconnection
Downloads the cutting list online and feeds cutting progress back to MES
Specifications
Key specifications for GLS300. Final configuration is set at order confirmation.
| Item | Value |
|---|---|
| Measuring length | 100 – 2800 mm |
| Saw cutting length | 200 – 4600 mm |
| Saw blade size | 305 × 25.4 × 120T |
| Measuring accuracy | 0.1 mm |
| Total installed power | 3 kW |
| Spindle power | 2.2 kW |
| Weight | 850 kg |
| Overall dimension (L × W × H) | 9200 × 850 × 1800 mm |

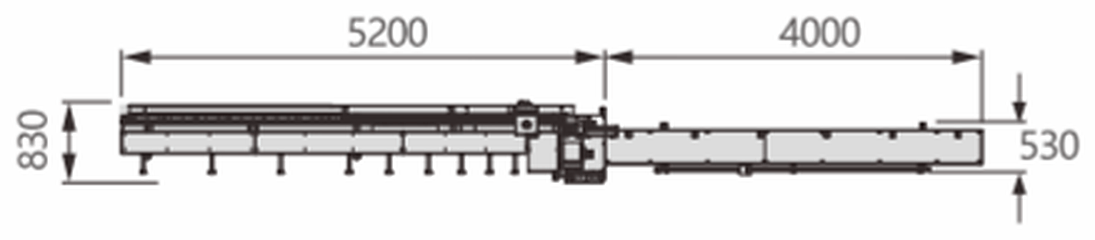

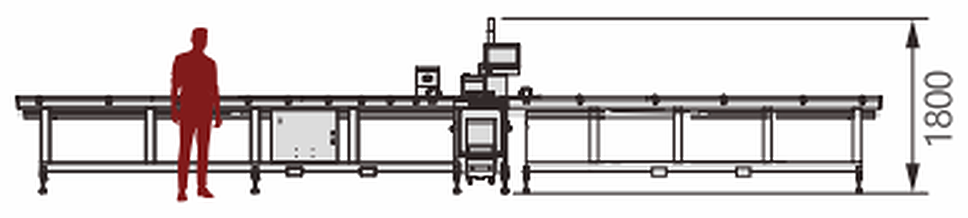

Machine Layout
Outline drawing of the GLS300 showing overall footprint and working envelope.
