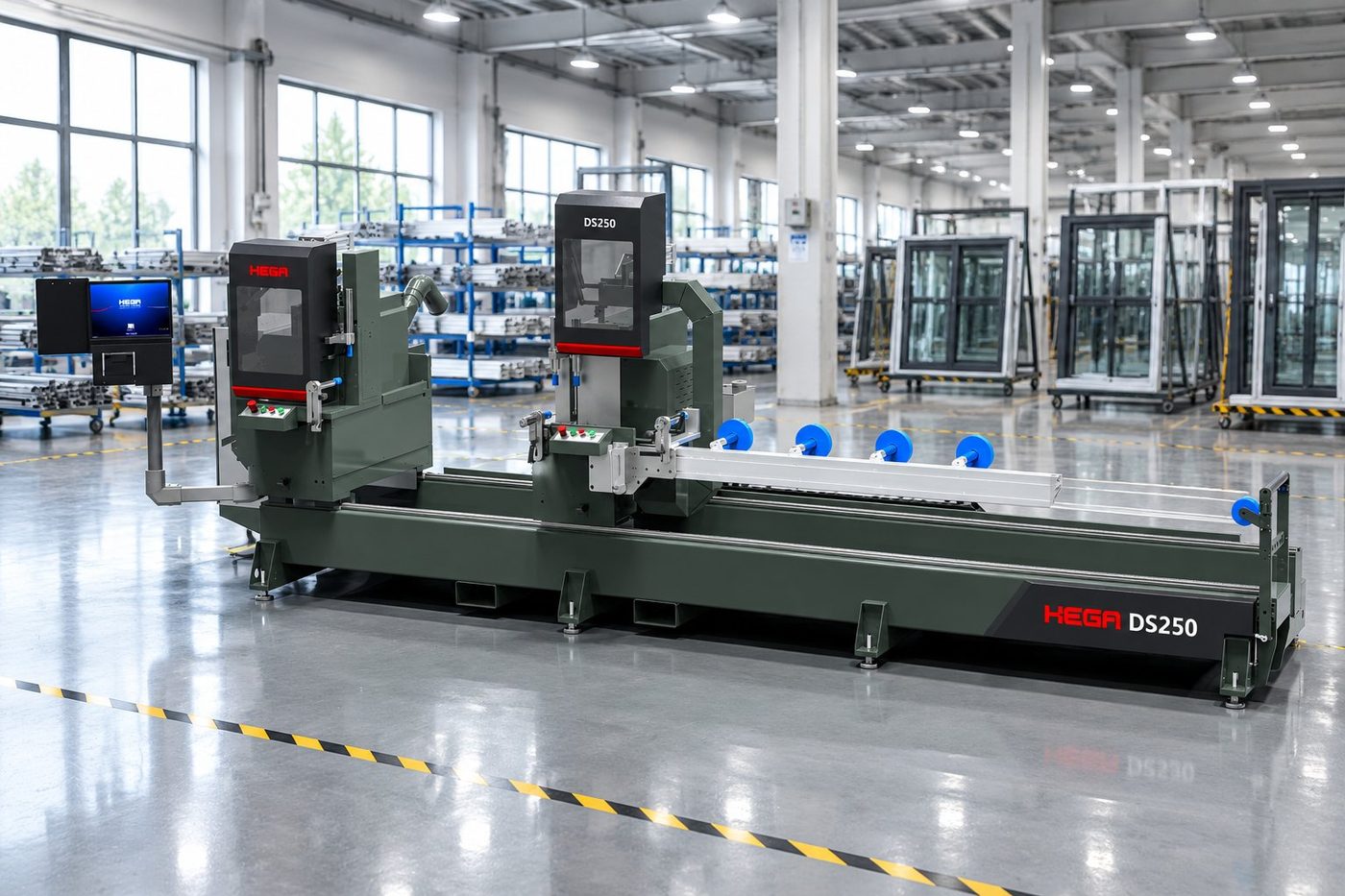

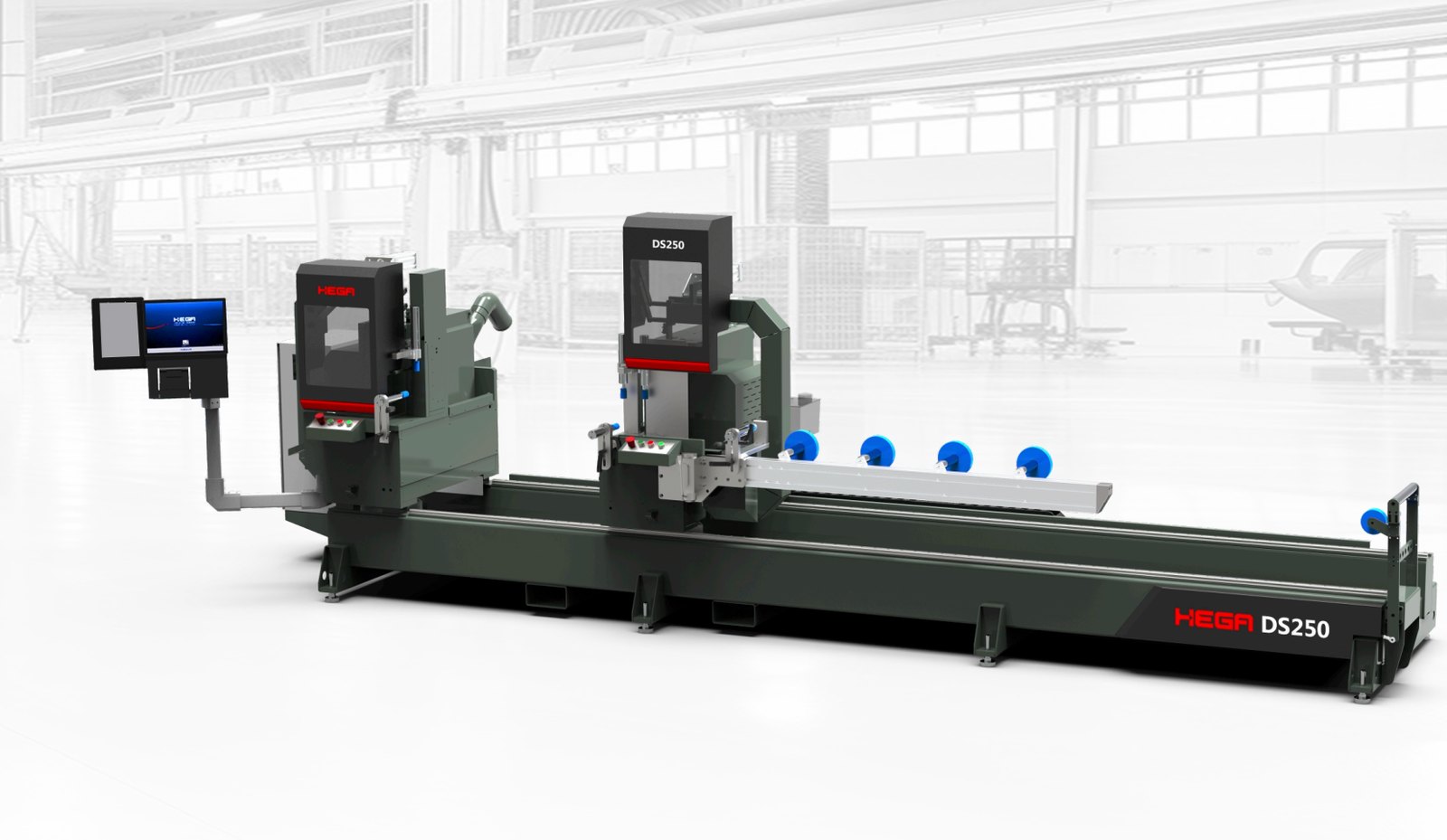

DS250 Double-Head Cutting Saw
Up to 4240 mm cutting length · compact 1850 kg frame
Video coming soonMachine Overview
Extended cutting capability for high-section aluminium profiles — 350 to 4240 mm, measured and positioned automatically.
The DS250 is a double-head cutting machine built for high-section aluminium window and door profiles, with a cutting length range of 350 to 4240 mm.
A 500 mm blade and twin 3 kW spindles cover the full range, while automatic profile-height measurement and 0.1 mm positioning keep long runs stable and square.
The compact 1850 kg frame leaves more of the shop floor to production, and real-time ERP integration means the machine always works from the current order data.

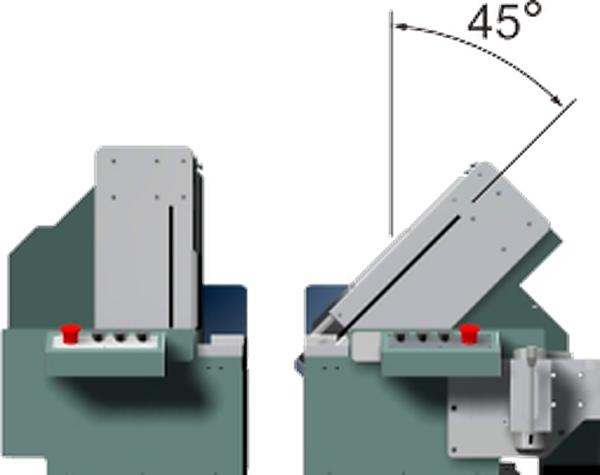

45° Outward Swing & 90° Cutting
A cylinder switches between 45° and 90° cutting, with 45° as the outward swing angle

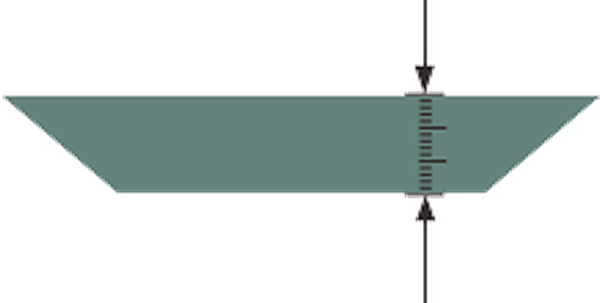

Automatic Height Measurement
Measures the profile height automatically before cutting, so there is no manual calculation

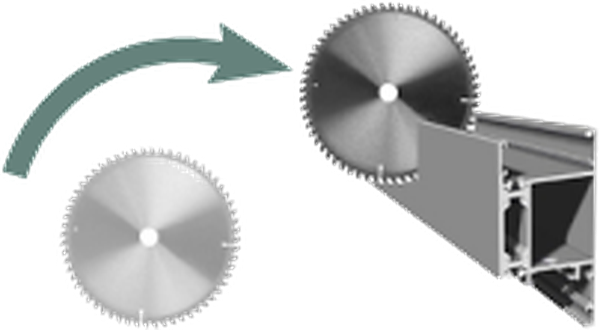

Curve Cutting
Follows curved profiles along dedicated cutting paths

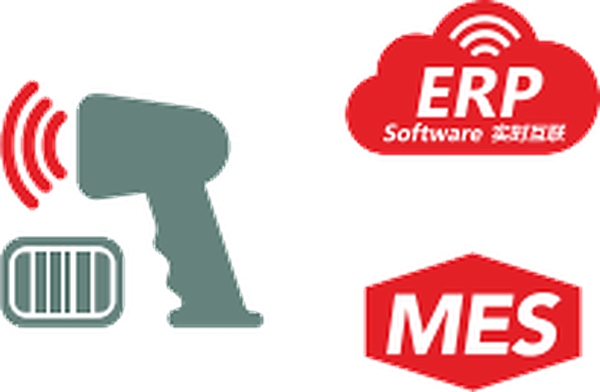

Cutting List Interconnection
Downloads the cutting list online and feeds cutting progress back to MES

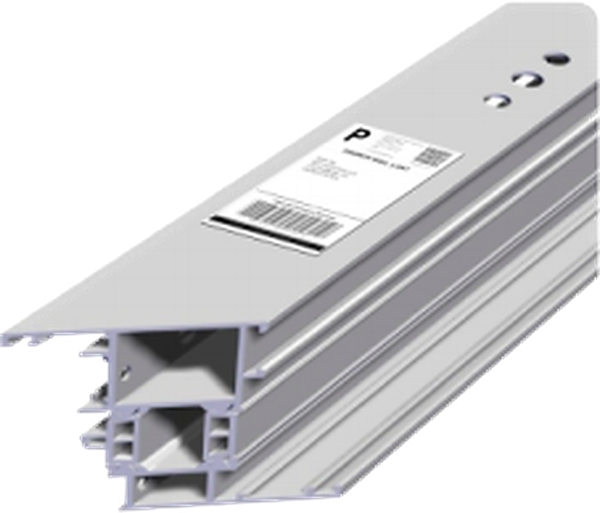

Label Printing
Prints rich-information labels on demand
Specifications
Key specifications for DS250. Final configuration is set at order confirmation.
| Item | Value |
|---|---|
| Cutting length range | 350 – 4240 mm |
| Oversize / short-cut range | 250 mm – unlimited |
| Positioning accuracy | 0.1 mm |
| Saw blade size | 500 × 30 × 120T |
| Total installed power | 7 kW |
| Spindle power | 3 kW × 2 |
| Weight | 1850 kg |
| Overall dimension (L × W × H) | 5500 × 1400 × 1780 mm |

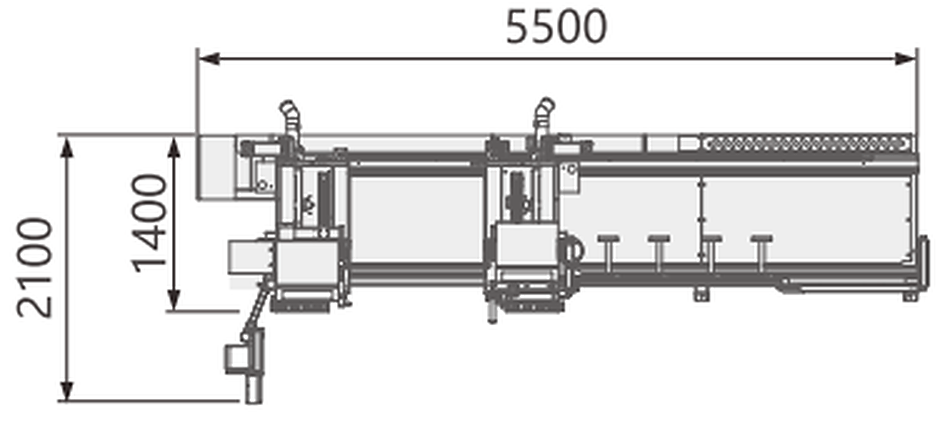

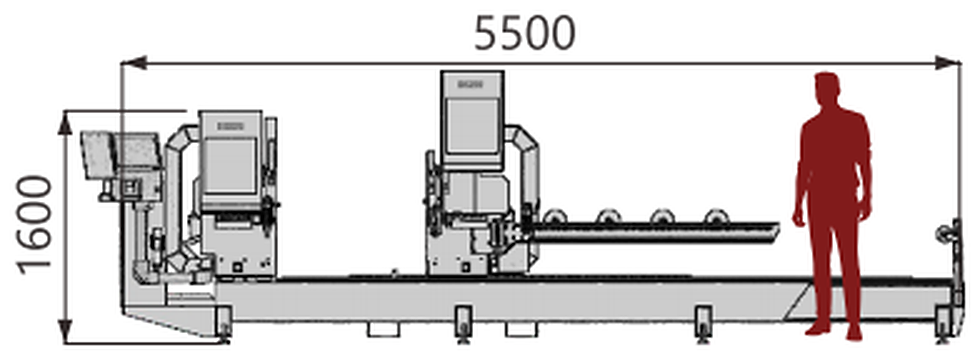

Machine Layout
Outline drawing of the DS250 showing overall footprint and working envelope.
